Graco

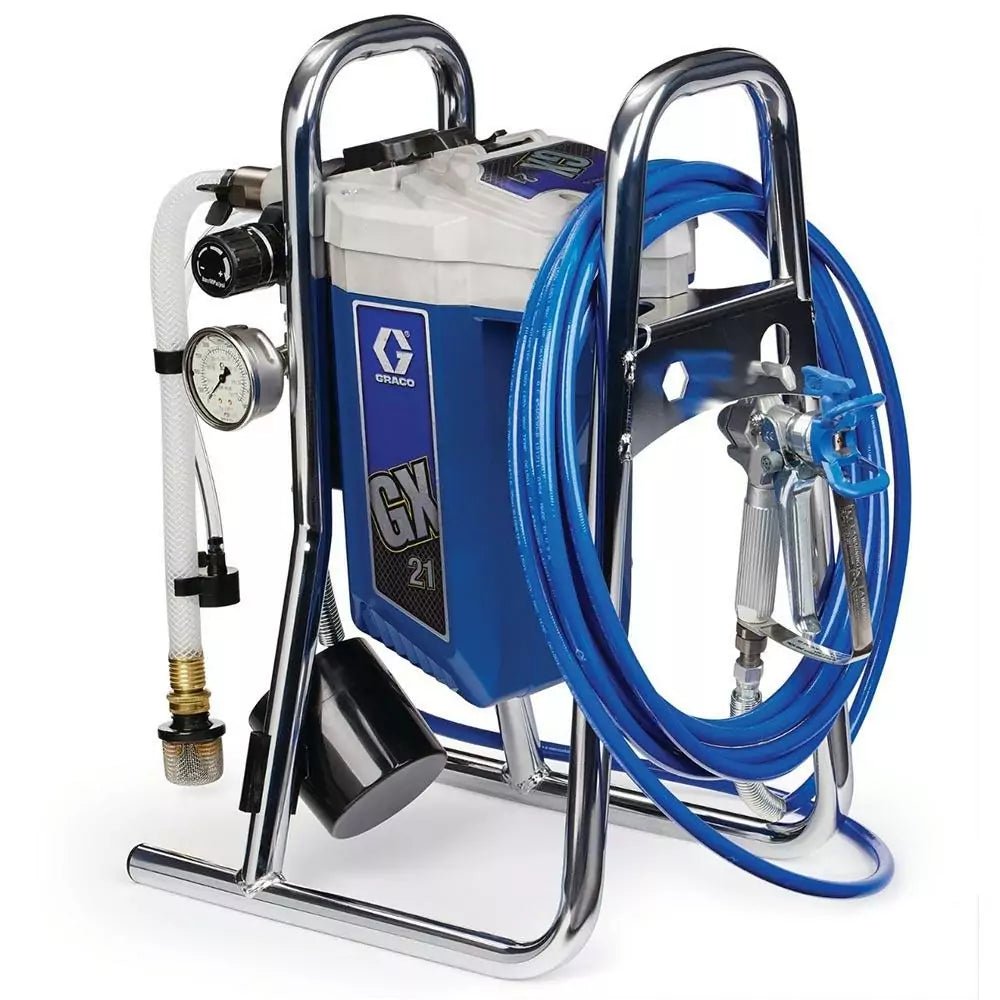

Graco GX 21 Electric Airless Sprayer
Graco GX 21 Electric Airless Sprayer
Regular price
R 26,500.00 ZAR
Regular price
Sale price
R 26,500.00 ZAR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The GX 21 is an airless sprayer for professional residential repainting, new-build and small fine-finish jobs.
This compact and lightweight unit can handle both water-based and solvent-based materials.
-
Extremely Portable
- Lighter than any competitive system
- Easy Carry Handle makes transportation easy
- Lid prevents splashes and spills while carrying
-
Direct immersion design
- Draws paint directly from paint buckets
- Flexible, clear suction set is easy to use and clean.
- Spray water-based or solvent-based paints directly from containers from 1 - 30 litres.
-
ProX Power Piston Pump featuring ProXChange
- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long-life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement - no tools needed
- Eliminate labour costs and downtime expenses
-
Professional SG3 Gun
- Includes RAC X tip, 15 m hose
Technical Specifications
| Compatible material | primer, stains, water-based paint, acrylics, enamel, latex |
| Compatible replacement pump | 24Y472 |
| Convertible | Non-convertible |
| Filter mesh size | 60 |
| Fluid hose inside diameter (in) | ¼ |
| Fluid outlet size (in) | ¼ |
| Fluid outlet size (mm) | 6.35 |
| Fluid outlet thread type | NPSM |
| Frame configuration | DI stand |
| Frequency (Hz) | 50 |
| Gun included | 1 |
| Hose diameter (in) | ¼ |
| Hose inlet diameter (cm) | 0.635 |
| Hose inlet diameter (in) | ¼ |
| Hose inlet diameter (mm) | 6.35 |
| Includes | SG3 Spray Gun with Four-Finger Trigger, RAC X SwitchTip, LP 517 and FFLP310 Guard, 1/4 in x 15 m Duraflex Hose, 60-Mesh Gun Filter |
| Maximum flow rate (GPM) | 0.47 |
| Maximum flow rate (L/min) | 1.8 |
| Maximum fluid working pressure (psi) | 3000 |
| Maximum hose length (m) | 15 |
| Maximum operating temperature (°c) | 46 |
| Maximum sound pressure level (db(A)) | 83 |
| Maximum tip size (in) | 0.021 |
| Maximum working pressure (MPA) | 20.7 |
| Maximum working pressure (bar) | 207 |
| Maximum working pressure (KPA) | 20700 |
| Maximum working pressure (kg/cm²) | 210.9 |
| Maximum working pressure (psi) | 3000 |
| Minimum generator power (w) | 3500 |
| Minimum operating temperature (°c) | 4 |
| Minimum generator power (kw) | 0.5 |
| Model | GX |
| Motor type | Electric |
| Number of guns | 1 |
| Outlet paint filter | 60 mesh stainless steel screen |
| Overall height (cm) | 55.9 |
| Overall length (cm) | 46.7 |
| Overall width (cm) | 30.5 |
| Phase | 1 |
| Power source | Electric |
| Pump mount type | ProXchange |
| Pump rod type | Carbon steel |
| Pump type | ProX piston pump |
| Region plug type | EU region (type C, E & F plug) |
| Series | 21 |
| Voltage (V) | 230 |
| Weight (kg) | 13 |
| Wetted material | stainless steel, brass, leather, UHMWPE, carbide, nylon, aluminium, PVC, polypropylene, fluoroelastomer |
