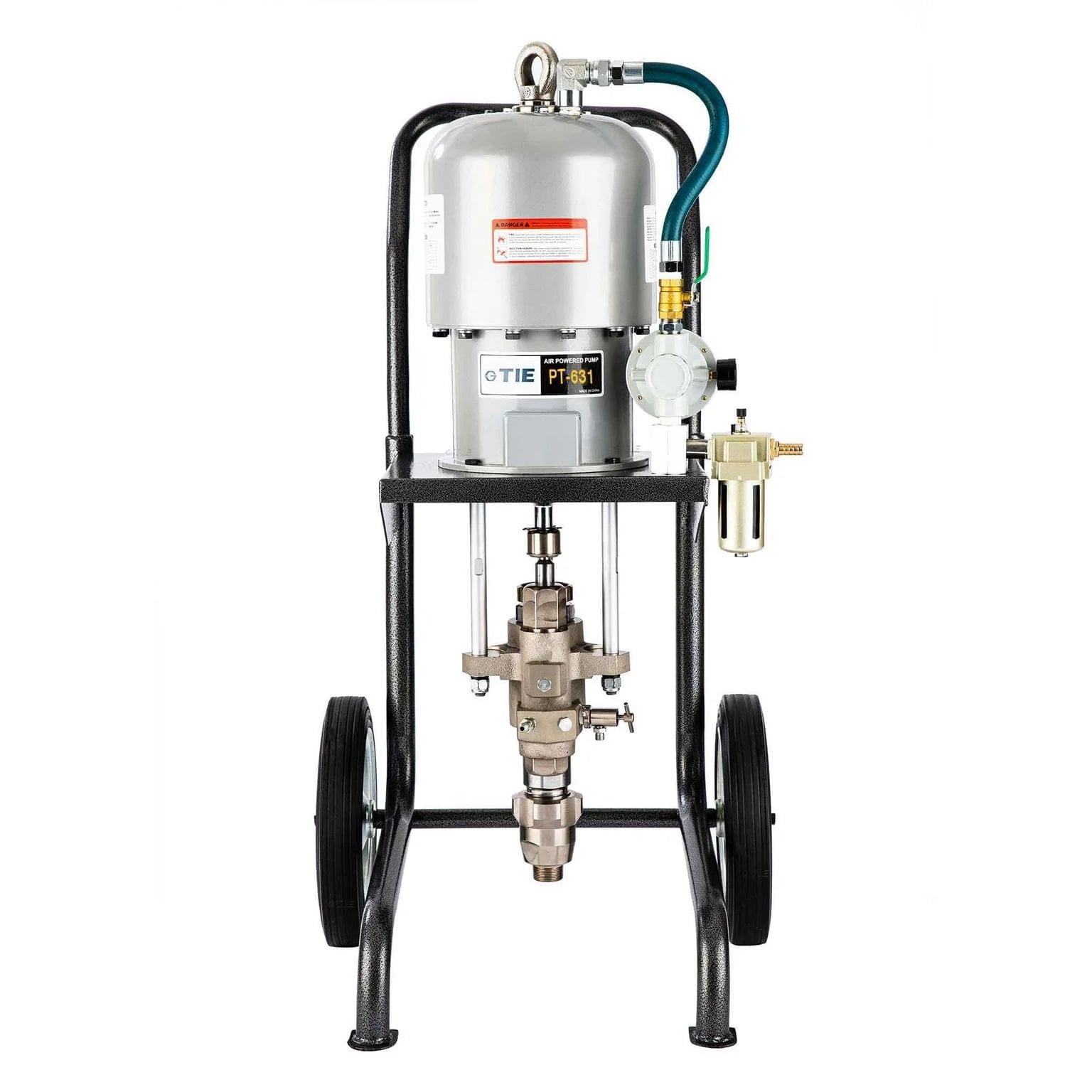

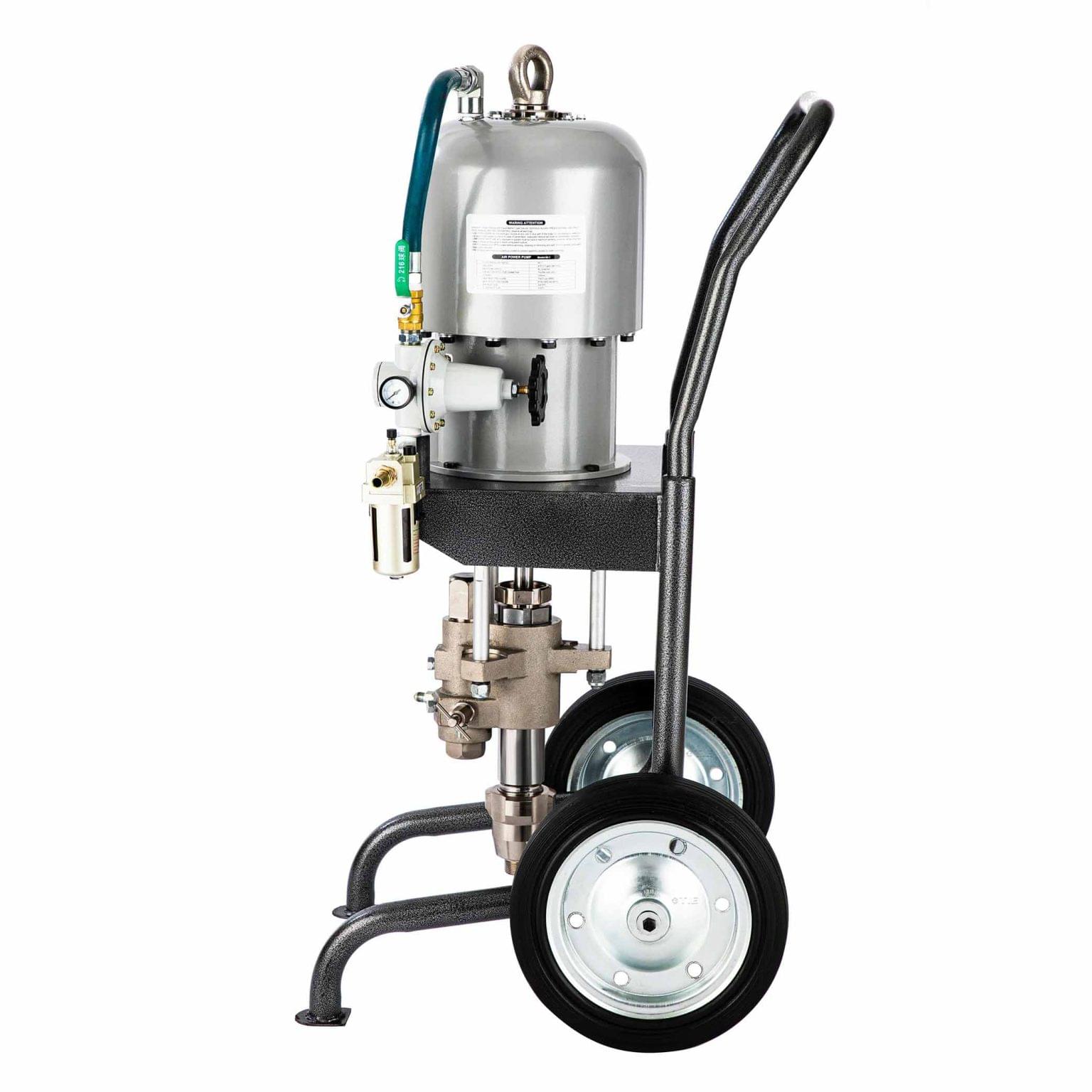

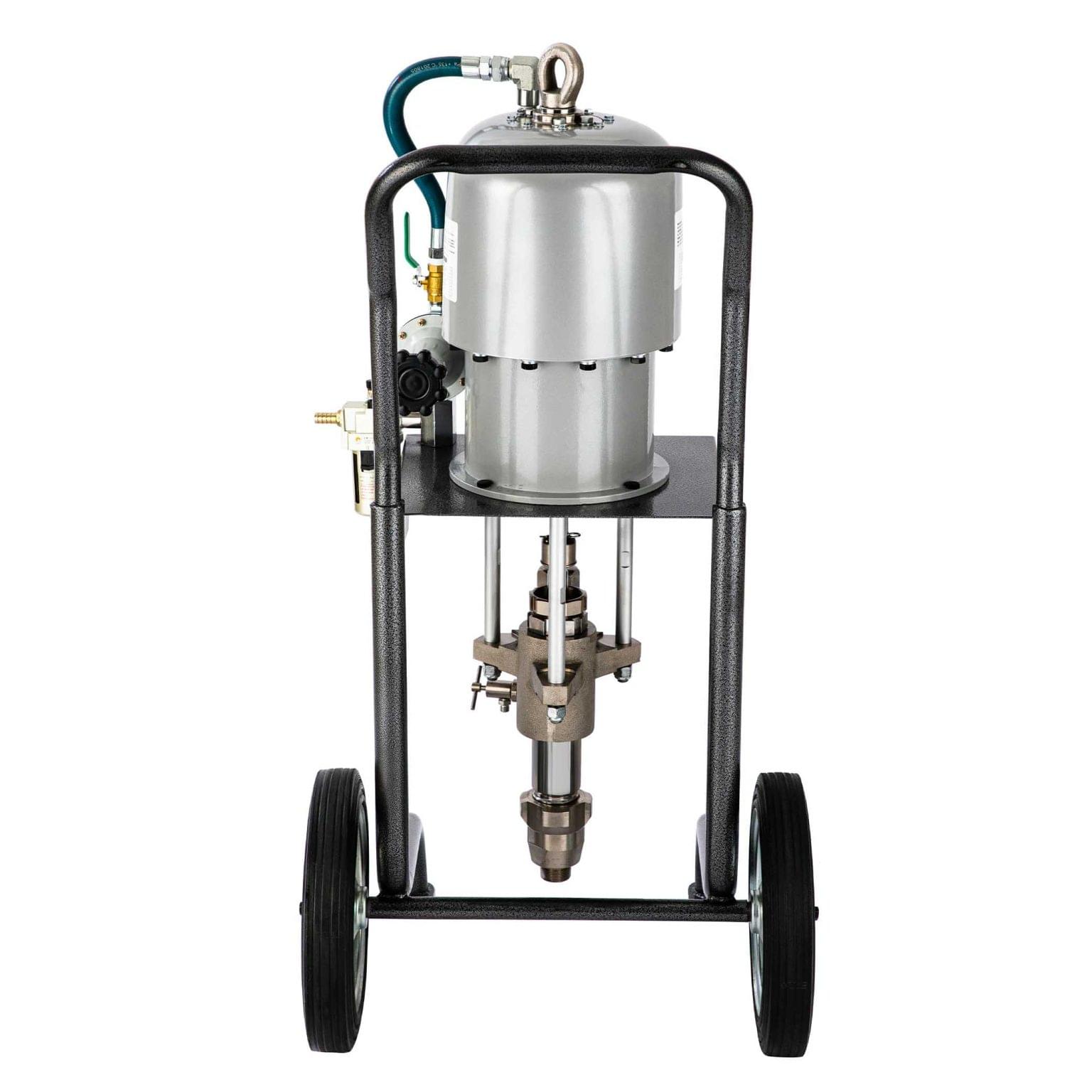

DAT 631 Pneumatic Airless Sprayer
DAT 631 Pneumatic Airless Sprayer
Couldn't load pickup availability
A Pneumatic Piston Airless Paint Sprayer
Portable and Convenient
With a frame featuring advantages of sturdy, compact and well-balanced, this pneumatic paint sprayer is convenient to transport. And this frame make the pump well-protected.
Safe and Stable
PT-631 pneumatic paint sprayer is powered by compressed air, which is safe explosion-proof. With a stable pressure and a small pulsation, this machine can realize an even coating and perfect surface smoothness.
Durable Piston
The piston is wear-resistant, greatly improving the service life. Designed to be quickly disassembled, effectively reduce the cost and time of maintenance.
Beatiful and Sturdy Desgin
Elegant in design, this machine is made of excellent workmanship. Use premium accessories and parts, greatly improving the durability and reliability.
Efficient and Silent
This pneumatic airless paint sprayer machine has a big flow of 15L/min, greatly improving work efficiency. Use mechanical ventilation, no open fire and heat. Feature an advanced silencer, creating a quiet work environment.
Fine Atomization
The piston offers a great delivery pressure which can provide fine atomization of paint. Make the coating even and reduce the paint wasting.
Intelligent Stop
The pneumatic airless paint sprayer would be powered off while the spray gun stop working. Greatly prolong the service life.
Coatings and Paints
primer, filler, 1k polyurethane, 2k polyurethane, 1k epoxy resin, 2k epoxy resin, water-based paint, fire retardant, waterproofing material, asphalt.
Application Scope
Steel structure and accessories, fireproofing, protection of timber structure, concrete structure repairing, waterproofing.
Specification
Pressure Ratio | 63:1 |
Output Ratio | 220cc |
Max Flow Rate | 12.6L/Min | 4GPM |
Max Air Pressure | 0.7Mpa | 100Psi |
Max Working Pressure | 44Mpa | 6300Psi |
Air Inlet Size | 3/4”PT |
Fluid Inlet Size | 1”PT |
Fluid Outlet Size | 3/8"NPSM |
Fastest Cycle Speed | 60CPM |
Air Motor Size | 10 In |
Stroke Length | 120mm |
Gross Weight | 133Kg |
DxWxH | 76cm×72cm×140cm |
